常见光模块故障原因与保护措施

参考阅读：

• 华为企业技术支持文档
• Common Optical Transceiver Failures and Solutions

引言

在高速数据中心、AI集群及企业网络环境中，光模块作为实现高速光通信的核心器件，其稳定性直接影响网络链路的可靠运行。然而，常见的光模块故障原因如ESD静电、光口污染、环境压力、兼容性异常以及器件老化等问题，都会导致光模块性能下降甚至链路中断。因此，了解常见故障原因并采取对应的保护措施，对于保障网络稳定性和延长设备寿命至关重要。

ESD损伤

ESD（电气接口/静电放电损伤）损伤是导致光器件性能下降、寿命缩短甚至失效的重要因素。由于光模块内部集成大量高灵敏度半导体器件，即使微小静电冲击，也可能造成PN结击穿、漏电流增加或器件参数漂移。ESD损伤通常具有隐蔽性，器件初期可能仍能正常工作，但在长期运行或高负载环境下会逐渐暴露问题，难以通过常规测试快速发现。

保护措施：

• 全流程落实防静电措施：运输、存储及安装过程中，光模块应始终置于防静电包装内，避免随意拆封或摆放。
• 规范操作流程：安装或更换模块时，操作人员需佩戴防静电手套和手环，并在ESD安全环境下操作。
• 正确插拔模块：保持接口对准，避免强行插入或频繁热插拔，必要时使用厂商推荐工具。
• 加强设备接地：确保测试及应用设备具备良好接地保护，降低静电积累对器件稳定性和寿命的影响。

光口污染和损坏

光模块光口长期暴露在环境中，容易受到灰尘、油污或指纹污染；使用受污染的光纤连接器，或插拔操作不当，也可能造成二次污染。此外，光纤连接器端面若存在划伤、裂纹等缺陷，同样会影响光信号传输。由于光纤端面对传输精度要求极高，即使轻微污染或损伤，也可能导致光信号散射、插入损耗增加及误码率（BER）上升，进而引发链路抖动、连接不稳定、传输距离下降，严重时甚至导致链路中断。

保护措施：

• 加强物理防护：运输、存储和使用过程中避免光模块跌落、碰撞或挤压；未连接时及时为光口和连接器佩戴防尘帽。
• 规范清洁检查：连接前检查端面是否有灰尘、油污或划伤；清洁时使用专用无尘工具和光学级清洁液，避免二次污染或端面损伤。
• 正确插拔操作：插拔时握持连接器本体，避免触碰插芯端面；禁止使用工具强行拆装，防止光口及内部器件受损。

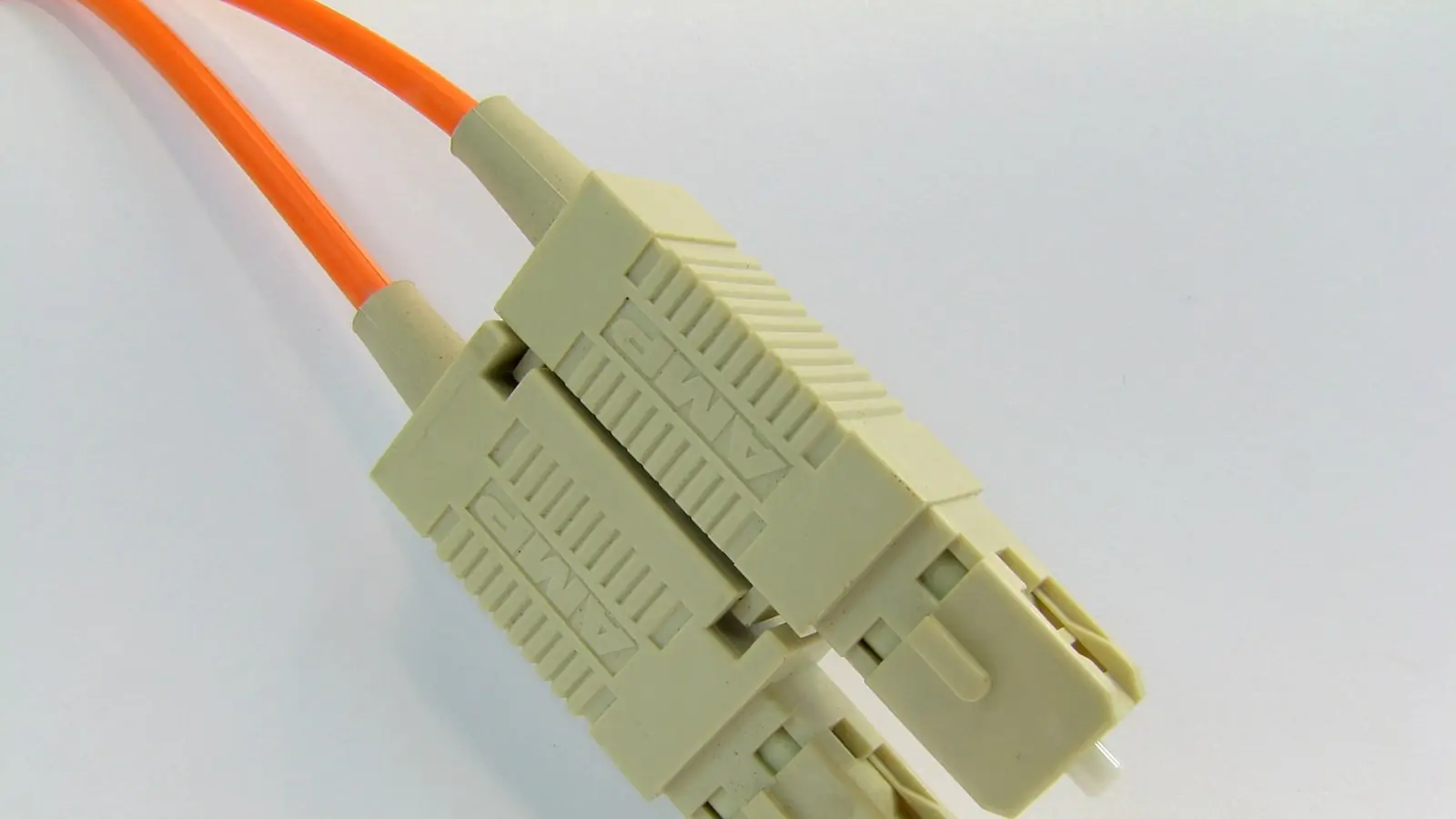

使用劣质光纤连接器

光纤连接器的加工精度直接影响光链路稳定性。若连接器存在材料质量差、插芯同心度不足或端面研磨不达标等问题，容易导致光信号耦合效率下降、回波损耗增大及接口匹配异常。部分低质量连接器在频繁插拔后，还可能出现端面磨损或接口松动，进一步增加链路故障风险。在高速数据中心和高密度网络环境中，这类问题通常表现为误码率升高、链路波动或端口无法正常建立连接；长期使用还可能持续磨损光模块接口，影响设备整体可靠性。

保护措施：

• 选用高品质连接器：优先使用符合行业标准的品牌光纤连接器和跳线，确保插芯材料、端面研磨及插拔寿命满足应用要求。
• 关注端面质量：部署前应检查连接器端面是否存在划伤、裂纹或研磨不良等问题，避免不合格连接器接入网络。
• 避免频繁插拔：减少非必要的插拔操作，防止连接器端面磨损或接口松动，降低对光模块光口的机械损伤。
• 保持链路一致性：在高速链路中，应尽量统一连接器类型和光纤规格，避免因接口兼容性或加工精度差异影响链路性能。

激光/光电探测器性能下降或失效

光模块内部的激光器（Tx）和光电探测器（Rx）是实现光信号收发的核心器件，其性能会随使用时间逐渐衰减。在长期高温、电压波动、ESD冲击或器件缺陷等影响下，激光器输出功率和接收灵敏度可能下降，严重时会导致器件提前失效。部分模块在寿命末期还可能出现链路异常或通信不稳定。通过DOM/DDM监测，通常可发现光功率波动、温度过高或电压异常等情况。

保护措施：

• 持续监控DOM/DDM数据：实时跟踪光功率、模块温度及工作电压，及时发现老化或异常趋势。
• 优化散热条件：保持设备良好通风散热，避免模块长期高温运行，减缓器件老化。
• 保障供电稳定：采用稳定、低噪声电源，减少电压波动、电涌及电磁干扰影响。
• 选择可靠供应商：优先选用经过严格老化测试和兼容性验证的高品质光模块，降低早期故障率并保障长期稳定运行。

兼容性和配置问题

虽然光模块在外形和接口上可能与设备兼容，但实际部署中仍可能因编码、固件或端口配置不匹配而导致链路无法正常建立。常见问题包括EEPROM信息无法识别、设备限制非原厂模块接入，以及速率、双工模式、FEC等参数不一致。此外，不同主机对高级功能支持存在差异，也可能引发链路协商失败或运行不稳定。即使硬件和光纤连接正常，兼容性问题仍可能导致通信异常。

保护措施：

• 提前验证兼容性：参考设备厂商兼容性列表（MCL/VLL），确认光模块与交换机、路由器及网卡的适配情况。
• 统一链路配置：确保链路两端的速率、双工模式、FEC等参数一致，避免配置不匹配。
• 选择适配编码模块：根据不同OEM平台选择预编码或定制兼容编码模块，提升设备识别率和网络稳定性。
• 关注固件与系统版本：设备升级后可能调整兼容策略，网络升级或扩容时需同步验证固件与光模块的兼容性。

环境压力

光模块运行会持续发热，在高温、高湿或通风不良环境下，容易加速激光器、驱动芯片及TEC等关键器件老化，进而导致性能下降与寿命缩短。若长期接近或超过约70°C的额定温度上限，可能引发输出功率降低、误码率上升及链路稳定性变差；高湿环境还会造成触点氧化与接口腐蚀，增加失效风险，表现为链路波动、传输不稳定及提前失效等。

保护措施：

• 优化散热环境：保持设备机房良好通风，清理风道与滤网，设备间保持合理间距，选用高散热能力机箱。
• 实时温度监控：通过DOM/DDM功能持续监测模块温度、发射功率及工作状态，并设置温度告警阈值。
• 控制部署环境：避免高温高湿部署，必要时使用空调或恒温机柜保障运行环境。

如何判断光模块的可靠性

在高速数据中心与 AI 集群环境中，光模块的可靠性直接影响网络稳定性、链路连续性以及长期运维成本。一旦模块出现误码、兼容性异常或过热失效，不仅会影响信号传输质量，还可能导致大规模训练任务中断与网络性能波动。

通常可通过以下几个关键指标判断模块可靠性：

• 误码率（BER）表现：在额定速率和传输距离下，模块的BER是否持续低于标准阈值。
• 兼容性验证：模块是否通过主流设备厂商（如NVIDIA、Cisco、Arista等）的兼容性测试。
• 功耗与散热表现：在满负载运行环境下，模块功耗是否在标称范围内，温度是否稳定。
• 厂商测试与交付能力：模块是否经过端面检测、3D测试、老化测试等全流程质量验证。

关于具体选型方法，可参考内容：选择光模块的必备因素。

结论

光模块故障往往并非单一因素造成，而是由环境、操作、兼容性及器件老化等多方面因素共同影响。通过规范安装操作、加强防静电与清洁管理、优化散热环境以及做好兼容性验证，可以有效降低故障率，提升光链路的稳定性与长期运行可靠性。在实际部署过程中，针对链路异常、模块不识别或通信不稳定等问题，也可结合《部署光模块的常见问题》进行进一步排查与定位。

---

Common Causes of Optical Transceiver Failures and Protective Measures

In high-speed data centers, AI clusters, and enterprise network environments, optical modules, as core components for high-speed optical communication, directly impact the reliable operation of network links. However, common causes of optical module failures, such as ESD (electrostatic discharge), port contamination, environmental stress, compatibility issues, and device aging, can lead to performance degradation and even link interruptions. Therefore, understanding common failure causes and implementing corresponding protective measures is crucial for ensuring network stability and extending equipment lifespan.

1. ESD Damage

ESD (Electrical Discharge/Electrostatic Discharge) damage is a significant factor leading to performance degradation, shortened lifespan, and even failure of optical devices. Because optical modules integrate numerous highly sensitive semiconductor devices, even minor electrostatic shocks can cause PN junction breakdown, increased leakage current, or device parameter drift. ESD damage is often insidious; devices may initially function normally, but problems gradually emerge during long-term operation or under high load conditions, making them difficult to detect quickly through routine testing.

Protective Measures:

• Implement anti-static measures throughout the entire process: During transportation, storage, and installation, optical modules should always be kept in anti-static packaging, avoiding arbitrary unpacking or placement.
• Standardize operating procedures: When installing or replacing modules, operators must wear anti-static gloves and wrist straps and operate in an ESD-safe environment.
• Correctly insert and remove modules: Maintain interface alignment, avoid forced insertion or frequent hot-swapping, and use manufacturer-recommended tools when necessary.
• Strengthen equipment grounding: Ensure that testing and application equipment has good grounding protection to reduce the impact of static electricity accumulation on device stability and lifespan.

2. Optical Port Contamination and Damage

Optical transceiver optical ports are exposed to the environment for extended periods, making them susceptible to dust, oil, or fingerprints. Using contaminated fiber optic connectors or improper insertion/removal procedures can also cause secondary contamination. Furthermore, scratches, cracks, or other defects on the fiber optic connector endface can also affect optical signal transmission. Because fiber optic endfaces require extremely high transmission accuracy, even slight contamination or damage can lead to optical signal scattering, increased insertion loss, and a higher bit error rate (BER), resulting in link jitter, connection instability, reduced transmission distance, and in severe cases, even link interruption.

Protective Measures

• Enhanced physical protection: Avoid dropping, impacting, or squeezing the optical module during transportation, storage, and use; promptly cap the optical port and connector with dust caps when not connected.
• Standardized cleaning and inspection: Before connection, inspect the endface for dust, oil, or scratches; use dedicated dust-free tools and optical-grade cleaning solutions during cleaning to avoid secondary contamination or endface damage.
• Proper insertion and removal operation: Hold the connector body when inserting or removing the connector, and avoid touching the end face of the ferrule; do not use tools to forcibly disassemble or remove the connector, so as to prevent damage to the optical port and internal components.

3. Using Inferior Fiber Optic Connectors

The processing precision of fiber optic connectors directly affects the stability of optical links. If connectors have poor material quality, insufficient ferrule concentricity, or substandard end-face grinding, it can easily lead to decreased optical signal coupling efficiency, increased return loss, and abnormal interface matching. Some low-quality connectors may also experience end-face wear or interface loosening after frequent plugging and unplugging, further increasing the risk of link failure. In high-speed data centers and high-density network environments, these problems typically manifest as increased bit error rate, link fluctuations, or inability to establish a connection at the port. Long-term use may also continuously wear down the optical module interface, affecting the overall reliability of the equipment.

Protective Measures

• Select high-quality connectors: Prioritize the use of brand-name fiber optic connectors and patch cords that meet industry standards, ensuring that the ferrule material, end-face grinding, and plugging/unplugging lifespan meet application requirements.
• Monitor end-face quality: Before deployment, check the connector end faces for scratches, cracks, or poor grinding to avoid connecting unqualified connectors to the network.
• Avoid frequent pluging and unplugging: Reduce unnecessary plugging and unplugging operations to prevent connector end-face wear or interface loosening, reducing mechanical damage to the optical module's optical port.
• Maintain link consistency: In high-speed links, connector types and fiber specifications should be standardized as much as possible to avoid affecting link performance due to differences in interface compatibility or manufacturing precision.

4. Laser/Photodetector Performance Degradation or Failure

The laser (Tx) and photodetector (Rx) inside the optical module are the core components for optical signal transmission and reception. Their performance gradually degrades over time. Under prolonged exposure to high temperatures, voltage fluctuations, ESD shocks, or device defects, laser output power and receiver sensitivity may decrease, potentially leading to premature device failure. Some modules may also experience link anomalies or communication instability towards the end of their lifespan. DOM/DDM monitoring can typically detect optical power fluctuations, excessively high temperatures, or abnormal voltage.

Protective Measures

• Continuous monitoring of DOM/DDM data: Real-time tracking of optical power, module temperature, and operating voltage to promptly detect aging or abnormal trends.
• Optimized heat dissipation: Maintain good ventilation and heat dissipation for the equipment to avoid prolonged high-temperature operation and slow down device aging.
• Stable power supply: Use a stable, low-noise power supply to reduce the impact of voltage fluctuations, surges, and electromagnetic interference.
• Reliable supplier selection: Prioritize high-quality optical modules that have undergone rigorous aging tests and compatibility verification to reduce early failure rates and ensure long-term stable operation.

5. Compatibility and Configuration Issues

While optical modules may be compatible with devices in terms of form factor and interface, in actual deployments, link establishment failures may still occur due to incompatibility in encoding, firmware, or port configuration. Common issues include unrecognizable EEPROM information, device restrictions on non-original modules, and inconsistencies in parameters such as speed, duplex mode, and FEC. Furthermore, differences in support for advanced features across different hosts can also lead to link negotiation failures or instability. Even with proper hardware and fiber optic connections, compatibility issues can still cause communication anomalies.

Protective Measures

• Proactive compatibility verification: Refer to the device manufacturer's compatibility list (MCL/VLL) to confirm the optical module's compatibility with switches, routers, and network cards.
• Unified link configuration: Ensure that parameters such as speed, duplex mode, and FEC are consistent at both ends of the link to avoid configuration mismatches.
• Selecting compatible encoding modules: Select pre-encoding or custom-designed compatible encoding modules based on different OEM platforms to improve device recognition rates and network stability.
• Pay attention to firmware and system versions: Compatibility policies may be adjusted after device upgrades. When upgrading or expanding the network, it is necessary to verify the compatibility between the firmware and the optical module.

6. Environmental Stress

Optical modules generate continuous heat during operation. In high-temperature, high-humidity, or poorly ventilated environments, critical components such as lasers, driver chips, and TECs are prone to accelerated aging, leading to performance degradation and shortened lifespan. Prolonged exposure to or exceeding the rated temperature limit of approximately 70°C may cause reduced output power, increased bit error rate, and deteriorated link stability. High humidity environments can also cause contact oxidation and interface corrosion, increasing the risk of failure, manifesting as link fluctuations, transmission instability, and premature failure.

Protective Measures

• Optimize heat dissipation environment: Maintain good ventilation in the equipment room, clean air ducts and filters, maintain reasonable spacing between devices, and select high-heat-dissipation-capacity chassis.
• Real-time temperature monitoring: Continuously monitor module temperature, transmit power, and operating status through DOM/DDM functions, and set temperature alarm thresholds.
• Control deployment environment: Avoid high-temperature and high-humidity deployments; use air conditioning or temperature-controlled cabinets when necessary to ensure a safe operating environment.

How to Evaluate Optical Module Reliability

In high-speed data center and AI cluster environments, the reliability of optical modules directly affects network stability, link continuity, and long-term maintenance costs. If a module experiences bit errors, compatibility issues, or overheating failure, it will not only affect signal transmission quality but may also lead to the interruption of large-scale training tasks and network performance fluctuations.

Module reliability can typically be assessed using key indicators such as:

• Bit Error Rate (BER) performance: Whether the module's BER consistently stays below the standard threshold at rated speed and transmission distance.
• Compatibility verification: Whether the module has passed compatibility tests with mainstream equipment vendors (such as NVIDIA, Cisco, Arista, etc.).
• Power consumption and thermal performance: Whether the module's power consumption remains within the specified range and temperature remains stable under full load operation.
• Manufacturer testing and delivery capabilities: Whether the module has undergone full-process quality validation including end-face inspection, 3D testing, and aging testing.

For specific selection methods, please refer to the article: Key Factors to Consider When Selecting Optical Transceivers.

Conclusion

Optical transceiver failures are rarely caused by a single factor, but rather by a combination of factors including environment, operation, compatibility, and component aging. By standardizing installation procedures, strengthening anti-static and cleaning management, optimizing the heat dissipation environment, and conducting thorough compatibility verification, the failure rate can be effectively reduced, and the stability and long-term reliability of the optical link can be improved. In actual deployment, for issues such as link anomalies, module recognition failures, or unstable communication, further troubleshooting and location can be conducted in accordance with the Common Problems While Using Optical Transceivers in AI Clusters.
